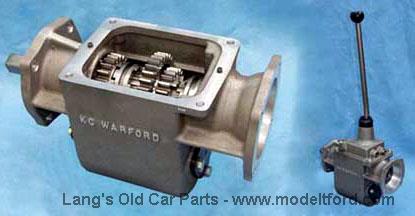

K C Warford Auxiliary Transmission

Item Number:	WARFTR
Per Car:	1
Year:	1909-1927
Condition:	New
Price:	This item is no longer available.

Additional Information

K C WARFORD AUXILIARY TRANSMISSION, 4 Additional speeds forward and two in reverse allows you the choice of overdrive, underdrive and direct gearing.

You cannot get this gear box stuck between gears, it has positive safe shifting while driving, . Improved design, plus computer CNC machining provide quiet, trouble- free operation.

Comes complete with the transmission, shifter, shift know and detailed installation instructions complete with diagrams..
Your drive shaft housing and shaft need to be shortened for installation.

Questions and Answers

What are the gear ratios for the warford transmission?

That is correcct. Here is a list of gear ratios if you were using a 3.64 to 1 ring and pinion.

KC Warford Gear Ratios

Ford Gear	Warford Auxiliary Transmission	Ratio
Low	Underdive (1)	18.41 to 1
Low	Direct (2)	10 to 1
Low	Overdrive (3)	8.31 to 1
High	Underdive (1)	6.67 to 1
High	Direct (2)	3.64 to 1
High	Overdrive (3)	3.02 to 1

Answered By: 23 SEL
27 out of 29 found this answer useful.

I Found this information or

Is this a stand alone unit or does it need to be bolted to the transmission?

This bolts up to the back of the tranmssion and you have to relocate the u joint back a few feet.
Answered By: 23 SEL
21 out of 23 found this answer useful.

I Found this information or

What is the actual ratio of 1st and 3rd gears? Im looking to run this on a speedster . This has direct drive no bands or planeteries.

Here are the ratios when using a 11/40 pinion gear and ring gear combo.

Underdrive (1) 6.67
Direct (2) 3.64
Overdrive (3) 3.02

Answered By: 39 SELL
3 out of 4 found this answer useful.

I Found this information or
