Spindle bolt set with flip top press-in oilers.

Model T Spindle bolt set with flip top press-in oilers. - 2710SB
Model T Flip top, press in type oiler, large - 2715DModel T Spindle body brass bushing - 2713Model T Spindle bolt set with flip top press-in oilers. - 2710SB
Model T Spindle bolt set with flip top press-in oilers. - 2710SB
Item Number:2710SB
Per Car:1
Year:1917-1927
Condition:New
Price:$72.95 set




Additional Information

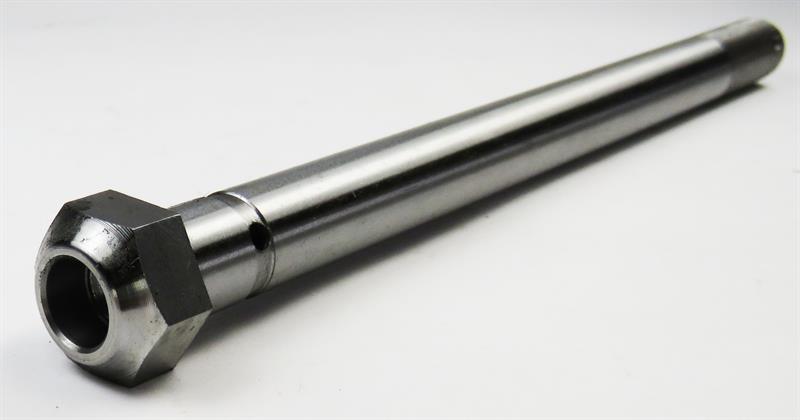

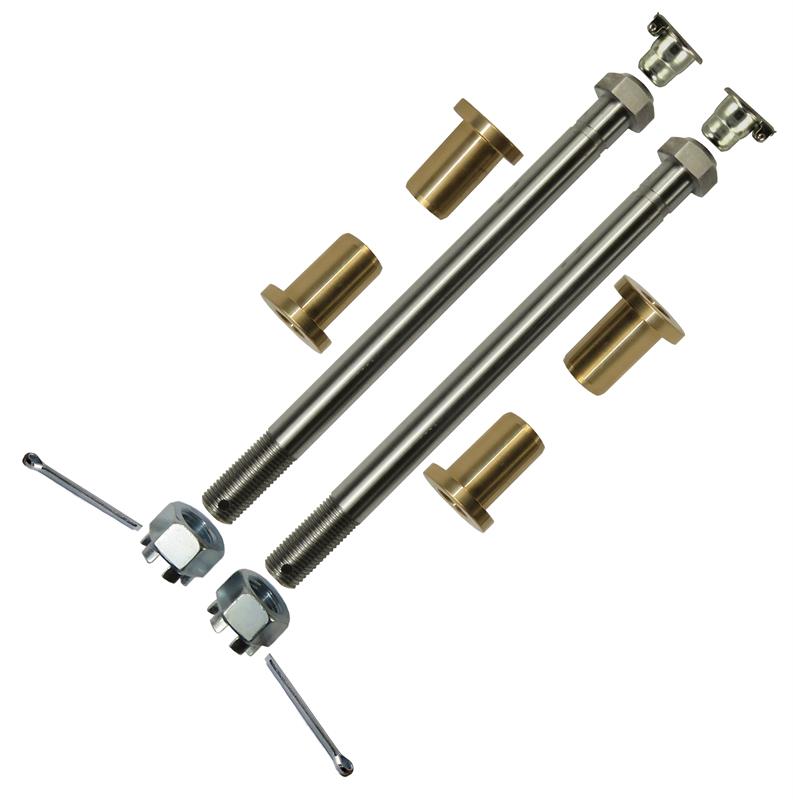

Spindle bolt set. Original style. Includes best quality hardened and ground bolts, press-in flip top oilers, brass bushings, castle nuts and cotter pins. 12 piece set. One set required per car.

Questions and Answers
Are these set ready to mount, or do i need a reamer or anything else?


you can change the bushings, but once you do that you will have to fit it to the axle. You might have to file the face down so it can fit inside the fork of the axle and you might have to rat tail file it alittle to get the bolt in. The best way of doing it though is with the reamer.


Answered By: 23 SEL
76 out of 118 found this answer useful.

I Found this information or
What do your spindle bolts mic out at?
 The bolts mic out at exactly .500. The original ones where .003 oversized.
Answered By: 23 SEL
43 out of 76 found this answer useful.

I Found this information or
Does this spindle bolt set fit the 1927 TT truck
 YES!
Answered By: 25 WJH
38 out of 75 found this answer useful.

I Found this information or

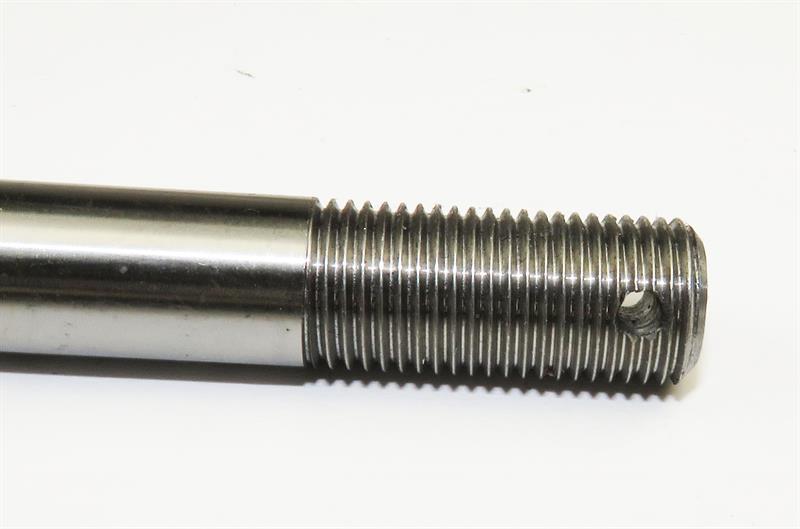

Are the bolts drilled for the cotter pins that hold the bottom castle nut?
 Yes and they come with the cotter pins to.
Answered By: 6 JRL
125 out of 254 found this answer useful.

I Found this information or


To ask a question about this item please press and fill out the form.
