Home > Item Number: 3002SC


Engine gasket set with copper head gasket

Model T 3002SC - Engine gasket set with copper head gasket
Model T 3002SC - Engine gasket set with copper head gasketModel T 3002SC - Engine gasket set with copper head gasketModel T 3002SC - Engine gasket set with copper head gasket
Model T 3002SC - Engine gasket set with copper head gasketModel T 3002SC - Engine gasket set with copper head gasketModel T 3002SC - Engine gasket set with copper head gasket
Item Number:3002SC
Per Car:1
Year:1909-1927
Condition:New
Price:$86.95 set




Additional Information

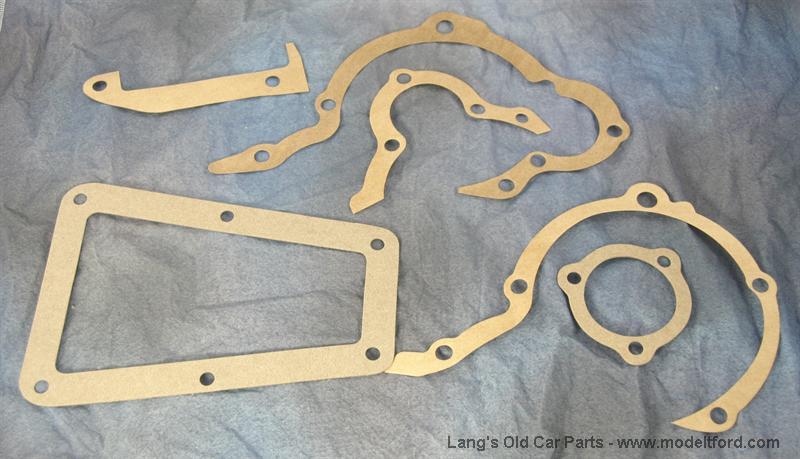

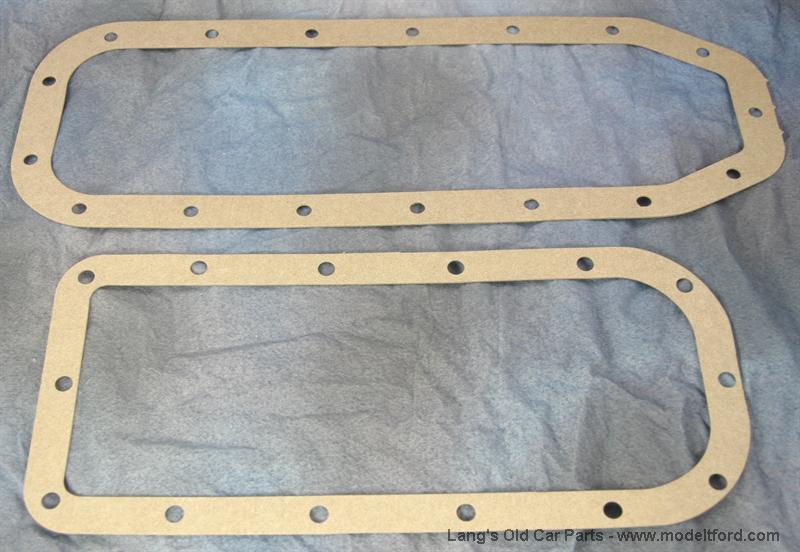

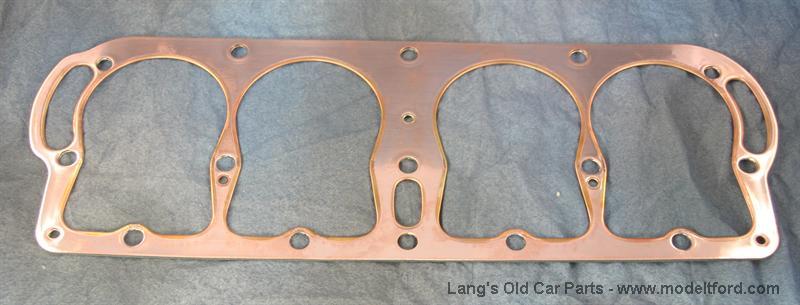

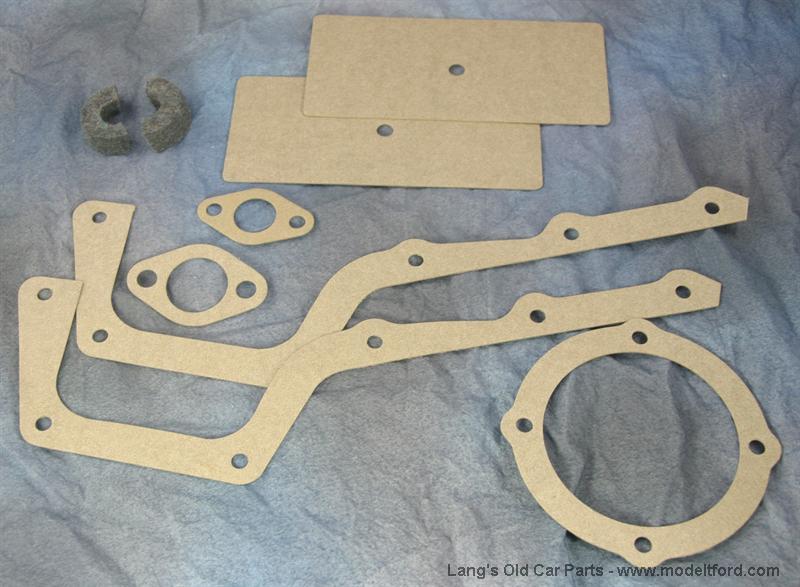

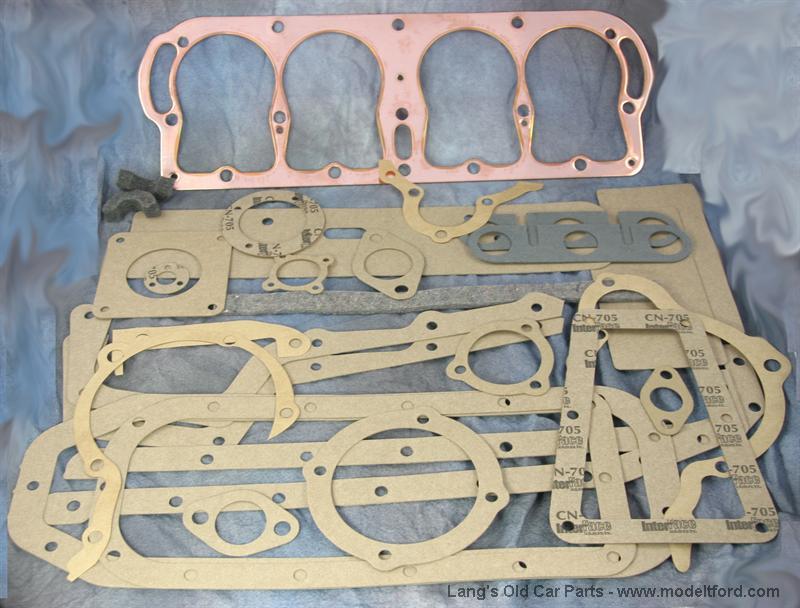

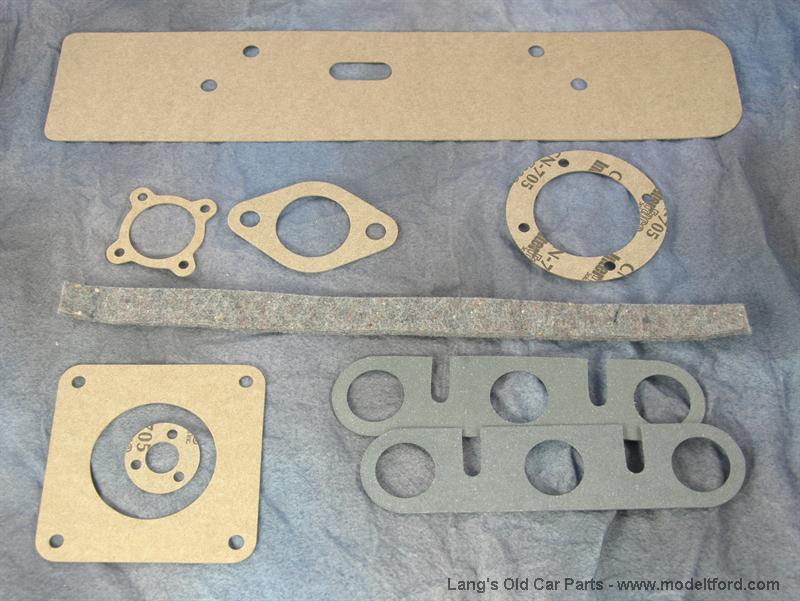

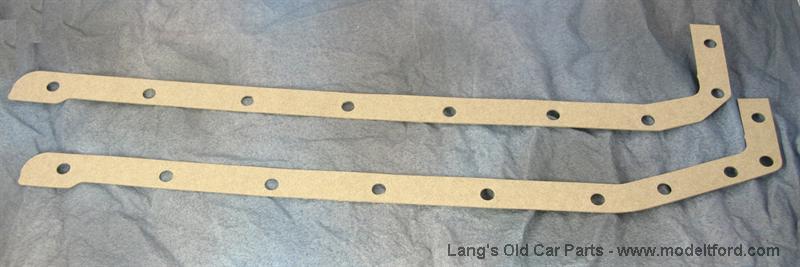

Engine gasket set with copper clad head gasket. This set includes all the gaskets for the motor, transmission, pan, and manifold, 30 piece set. NOTE: the manifold gasket that is included is the 3-in-1 two piece style, 3063-3

Questions and Answers
What order and torque do you tighten head bolts?


You tighten these head bolts starting from the center  bolt alternating sides until you reach the ends. The torque depends on what type of head you have.

  • Original Steel Head - 50-55 lbs.

  • Aluminum Reproduction Head 45 lbs.


Answered By: 23 SEL
334 out of 479 found this answer useful.

I Found this information or
after tightning head down and running engine, must a new head gasket be used if tore back down?
 You can get away with reusing the copper style gasket as long as it isnt damaged, The steel gaskets and the silicone gaskets are a one time use.
Answered By: 23 SEL
88 out of 147 found this answer useful.

I Found this information or
Will this gasket work with the high compression heads or pistons?
 Yes this one will work with the high compression heads or pistons, I have both of them on my speedster. The sillicon gasket will not.
Answered By: 23 SEL
87 out of 146 found this answer useful.

I Found this information or
