Repair Kit for Worn Spindle Holes and Threads on Front Axle

Model T Repair Kit for Worn Spindle Holes and Threads on Front Axle - 2691RB
Model T Repair Kit for Worn Spindle Holes and Threads on Front Axle - 2691RB
Item Number:2691RB
Per Car:1
Year:1909-1927
Condition:New
Price:$21.95 kit




Additional Information

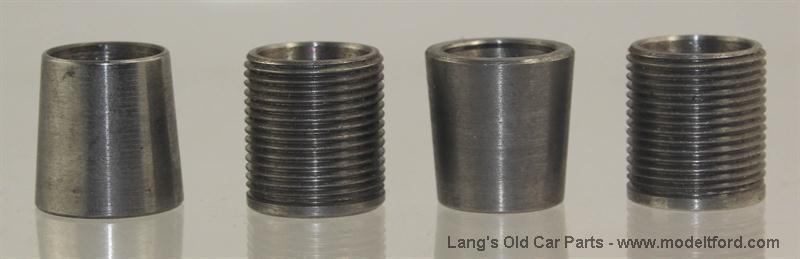

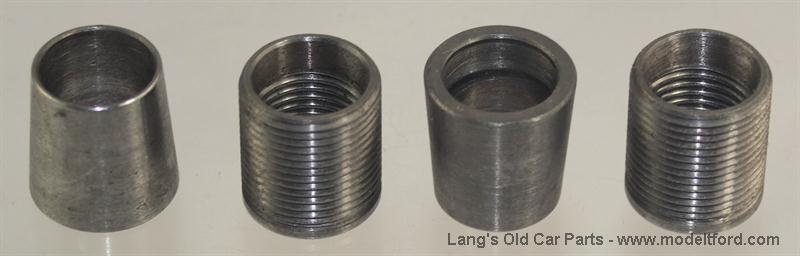

This kit has 4 pieces that allow you to repair the diameter of the hole for the spindle bolt and the treads on a worn front axle. This kit includes 2 top steel bushings and 2 lower threaded steel bushings.
The top hole for the spindle has to have a tapered opening machined into it. The steel bushing is then inserted to bring the hole back to the correct size.
The bottom hole is drilled out and threaded to accept the second steel bushing. This bushing is screwed in place to give the spindle bolt good threads to grab onto.
Questions and Answers
What size drill and tap is need for heli-coil. Similar question for tapered bushing - reamer size and pitch.

The tapered bushing has a 8.5degree taper and the threaded insert is 5/8 x 24tpi
Answered By: 23 SEL
25 out of 28 found this answer useful.
