Ball Bearing Universal ball cap, no machining to the tail shaft required

Model T Ball Bearing Universal ball cap, no machining required - 3369BBD
Model T Ball Bearing Universal ball cap, no machining required - 3369BBDModel T Ball Bearing Universal ball cap, no machining required - 3369BBD
Item Number:3369BBD
Per Car:1
Year:1909-1927
Condition:New
Price:This item is no longer available.
Additional Information

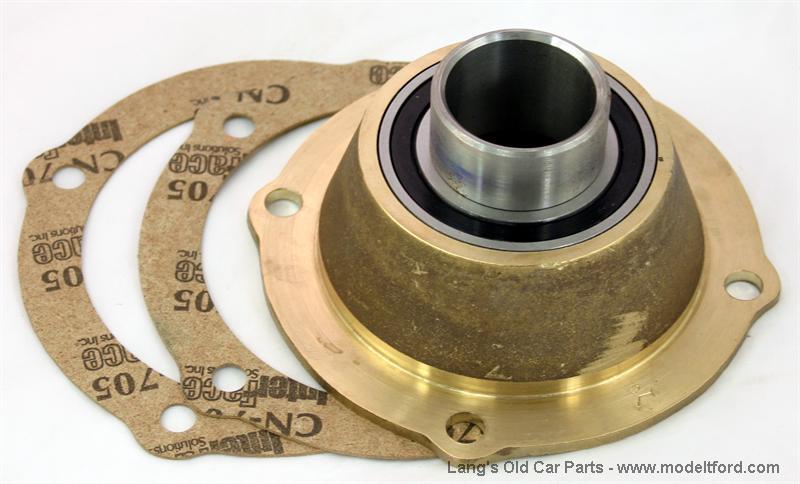

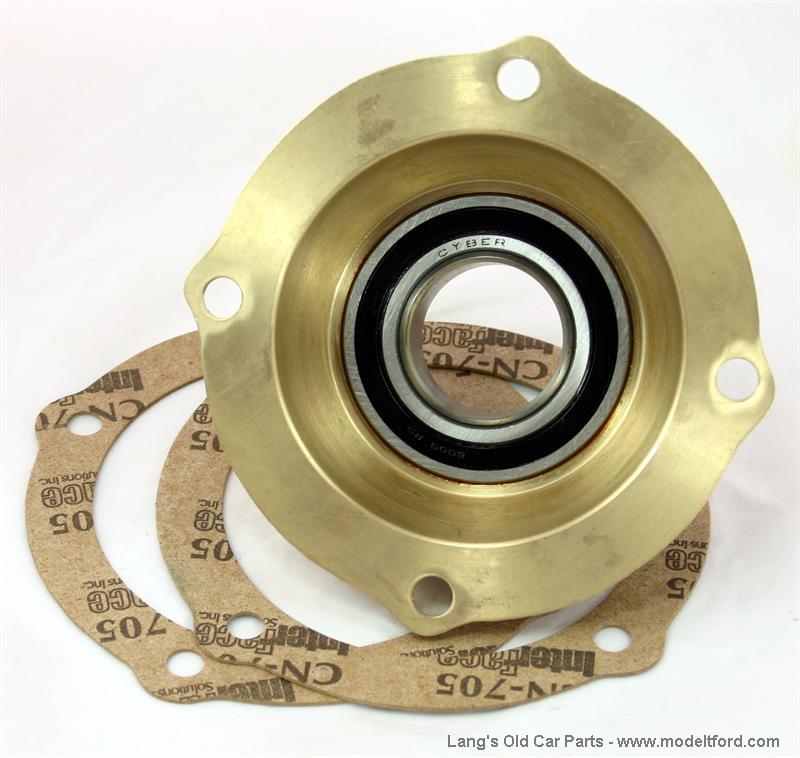

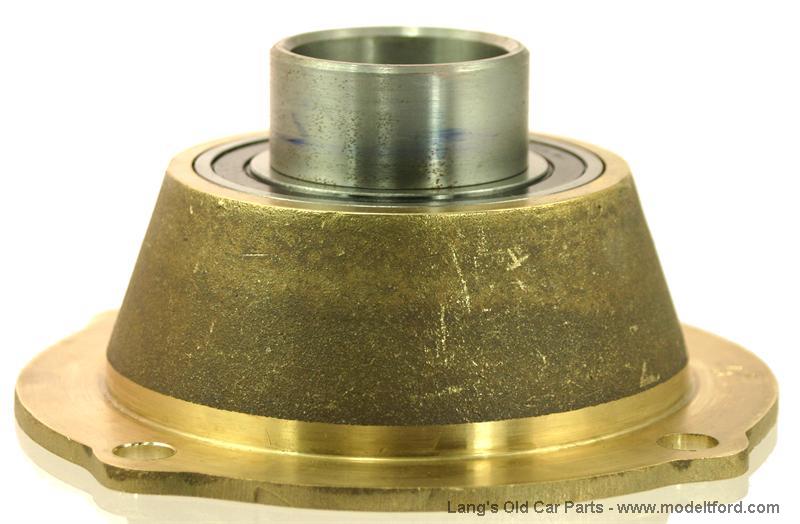

Ball Bearing Universal ball cap, (4th main) Uses a high quality sealed bearing to eliminate oil leaks, vibration and crankshaft fatigue. Can be installed without removing the transmission to machine the tail shaft!! Has new cast silicone bronze housing, no need for an exchange core. Ball on drive shaft tube has to be cut  3/8” shorter in length and the sleeve that is supplied in this kit has to be machined to fit your tail shaft. Instructions included.

Questions and Answers
These are two a questions about the bearing fits in your ball cap: 1) Is the outer race of the ball bearing a press fit into the bronze housing, or is it a slip fit? 2) is the sleeve, which must have its Inside diameter bored to fit the exiting tail shaft, a press fit in the inner race of the ball bearing, or is it a slip fit? Thanks!
 The bearing is a press fit into the bronze housing and the sleeve is supposed to be bored to fit the tail shaft. In most cases the sleeve is just a press fit onto the tail shaft of the transmission.
Answered By: 23 SEL
12 out of 12 found this answer useful.
